And what they don’t.

The RILEM TC 304-ADC inter-laboratory study (ILS-mech) is one of the largest open datasets connecting 3D-printed concrete mechanical properties to layer-level process parameters. Thirty laboratories worldwide each printed and tested their own mix design under a shared study protocol — nine different commercial print products plus a range of self-prepared mixes — generating specimen-level mechanical results (compressive strength, elastic modulus, flexural and tensile strength) alongside layer geometry and process records. Because the material differs from lab to lab, the dataset shows how 3DCP strength varies across materials, equipment, and procedures together — and, against that backdrop, how little the tunable process parameters actually move the needle.

The purpose of the ILS was to characterize the reproducibility of extrusion-based 3D concrete printing across different labs and equipment setups — not to rank participants. We analyzed the full dataset to extract what matters for 3D concrete printing process control and production QC. The results are illuminating — but not always in the way you might expect.

Finding #1: Layer Interval Time in 3D Concrete Printing

Of all the process parameters tracked in the dataset, layer interval time shows only a weak correlation with compressive strength — about r = -0.10 across the 3D-printed specimens (n = 3,143). Within this dataset it is not a strong lever for strength.

If anything, longer layer intervals are associated with slightly lower strength — consistent with growing cold-joint risk as the interval increases — but the effect is small and easily swamped by differences in equipment and mix design.

This is a weak effect, and we should not draw general conclusions to all 3D-printable cements. Within the short intervals tested here — well under the 5–15 minute layer times typical of residential-scale prints — interval time is not a meaningful strength lever; as intervals lengthen toward cold-joint territory, interlayer bonding and strength tend to fall.

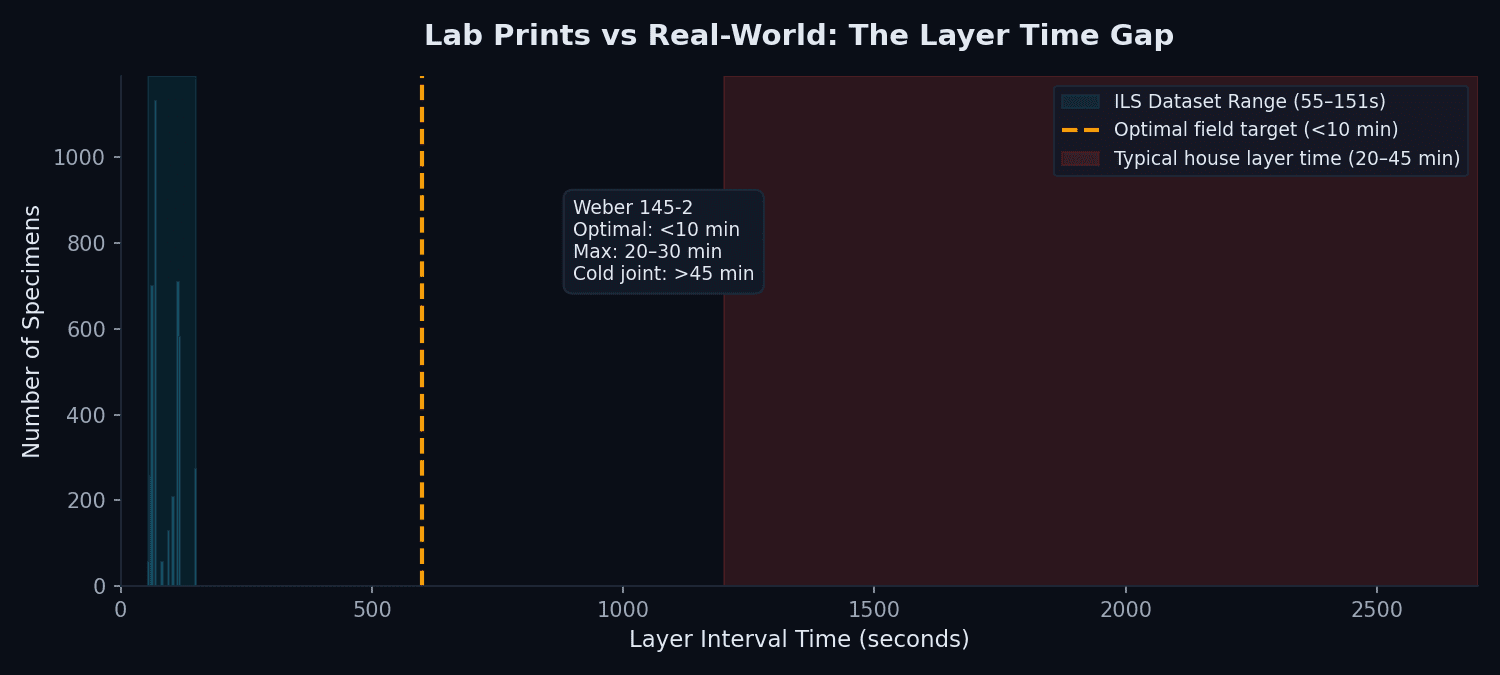

Across the dataset, layer intervals span roughly 0.5 to 360 seconds (averaging about 94 seconds) — short cycle times, nowhere near the 5–15 minute layer times typical for residential-scale prints. Commercial 3DCP mortars are formulated for cold-joint-free bonding within their open time; verify the open time for your specific material and equipment.

What this means for practitioners: Layer interval time is a minor factor for strength in this dataset. If you are printing structures with 10+ minute layer times, this dataset does not cover your operating window — and the weak trend here should not be extrapolated. Equipment consistency and mix design dominate.

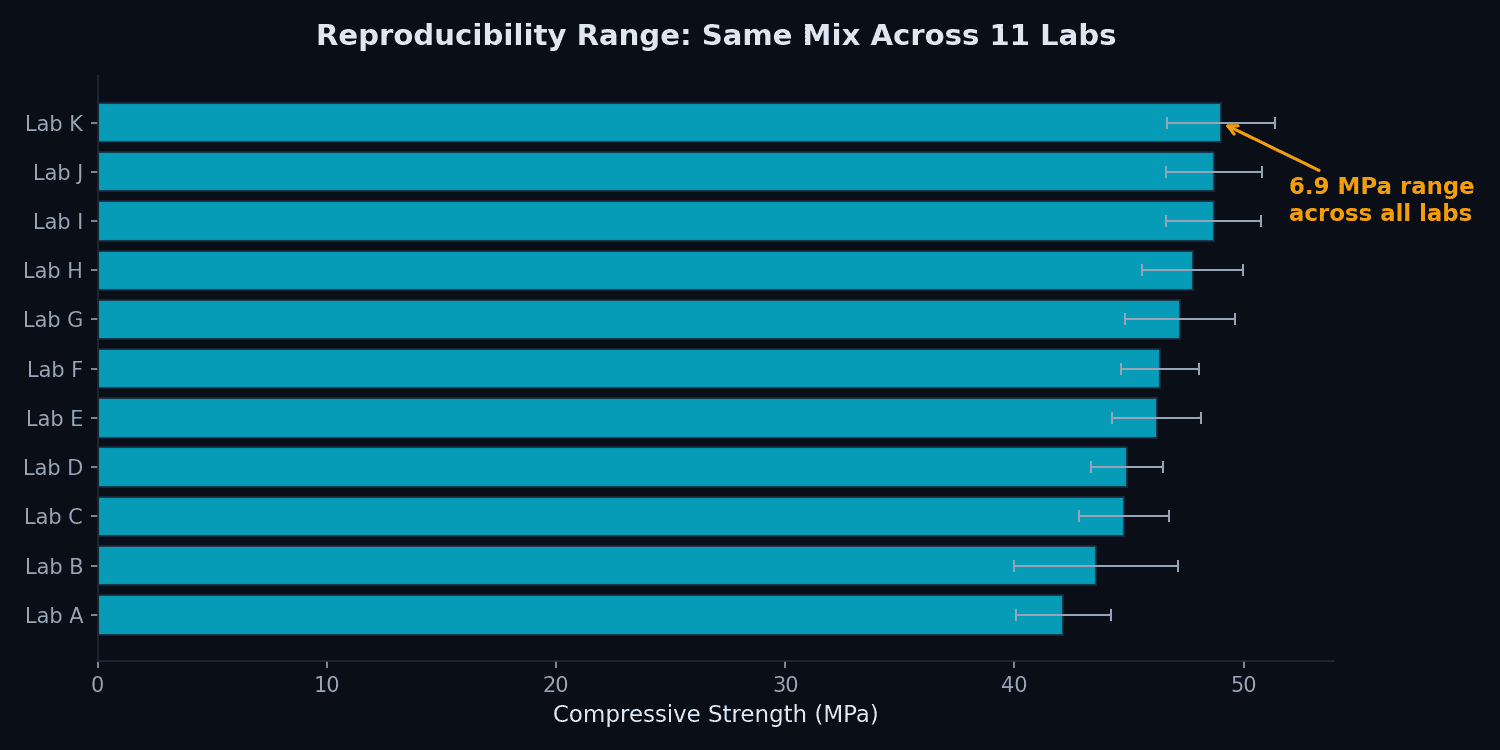

Finding #2: The Biggest Driver Is the Mix and the Lab

The single largest source of variation in compressive strength is not a tunable process parameter — it is which mix a lab used, and how that lab printed it.

Because each of the 30 laboratories printed its own mix design, the spread is dramatic. Across the 25 labs that reported printed specimens at 28 days under the default protocol, average compressive strength ranges from roughly 27 MPa to 96 MPa — a spread of about 69 MPa, or more than 3× from weakest to strongest. That range bundles together different binders, water/binder ratios, and admixtures with different pump systems, nozzle geometries, mixing procedures, ambient conditions, and operator practices across 30 independent institutions.

The practical consequence: a strength value published by one lab, for one mix, on one machine does not transfer to another setup. Reproducibility in 3DCP has to be established for your specific material and equipment — it cannot be assumed from a headline number, however carefully measured. Set against that ~69 MPa material-and-equipment spread, the individual process parameters we can actually tune (layer time, print speed) move strength by only a few MPa.

What this means for practitioners: Before optimizing layer time or print speed, lock down your material and make sure your equipment is calibrated and your procedures are repeatable. Consistent mixing, pump calibration, and nozzle maintenance are the foundation of reliable 3D concrete printing process control.

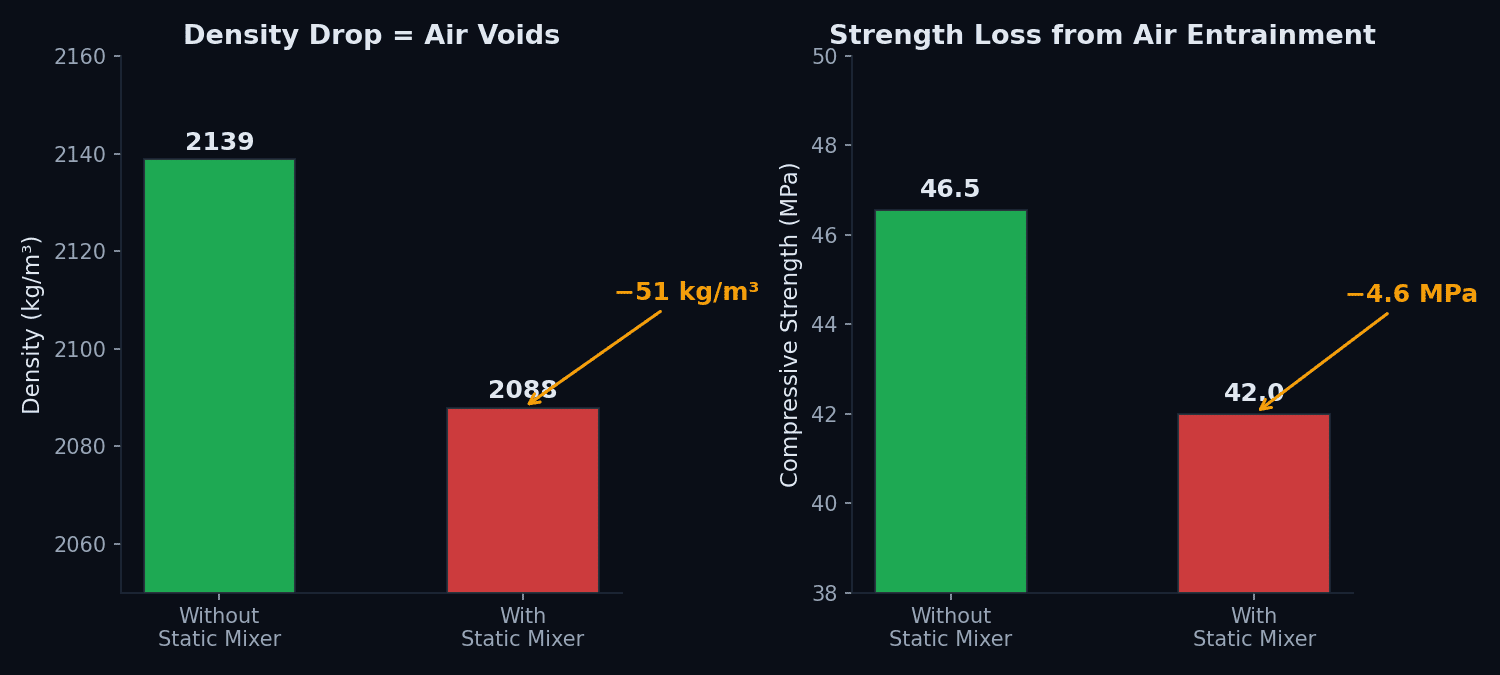

Finding #3: Static Mixers and Air Void Formation in 3D Concrete Printing

A subset of laboratories ran two-component (2K) systems with inline static mixers — typically used to dose accelerator at the printhead, relying on flow-division and radial mixing across internal helical elements.

Because every lab in this study printed a different mix, the dataset does not let us cleanly separate the effect of a static mixer from the effect of the material itself — so we do not attach a specific strength or density penalty to static mixers here. But the underlying mechanism is well documented in the 3DCP literature and is worth monitoring on any 2K line.

What the voids look like under the microscope

Cross-section analysis via optical petrography and X-ray micro-CT in related 3DCP studies reveals characteristic patterns associated with mechanical air entrainment:

• Void size shift: A well-mixed batch produces fine entrained air (10–100 μm). Specimens extruded through static mixers can exhibit a bimodal distribution with macro-voids from 100 μm up to 1–3 mm.
• Irregular morphology: Unlike the spherical voids from chemical air-entraining agents, mechanically entrapped voids tend to be irregular and elongated — the fingerprint of shear-induced entrainment.
• Non-uniform distribution: Macro-voids can concentrate along the shear planes of the mixer elements and migrate toward inter-layer boundaries during extrusion — exactly where structural integrity matters most.

Unlike cast concrete, 3D concrete printing has no post-extrusion vibration to consolidate the matrix, so air folded in at the printhead can remain trapped in the deposited filament. Even a few percent of additional entrapped air can matter — and the concern is not just the total air content, but where that air concentrates.

Static mixers vary widely in geometry and performance. For operators running 2K systems with inline accelerator dosing, this variable should be characterized for your specific equipment and material combination.

What this means for practitioners: Monitor density at the nozzle exit. A drop of tens of kg/m³ from your target density is worth investigating. Cross-section a specimen periodically — even a simple saw-cut and visual inspection will reveal large irregular voids. If they concentrate at layer interfaces, your mixing setup may be worth revisiting.

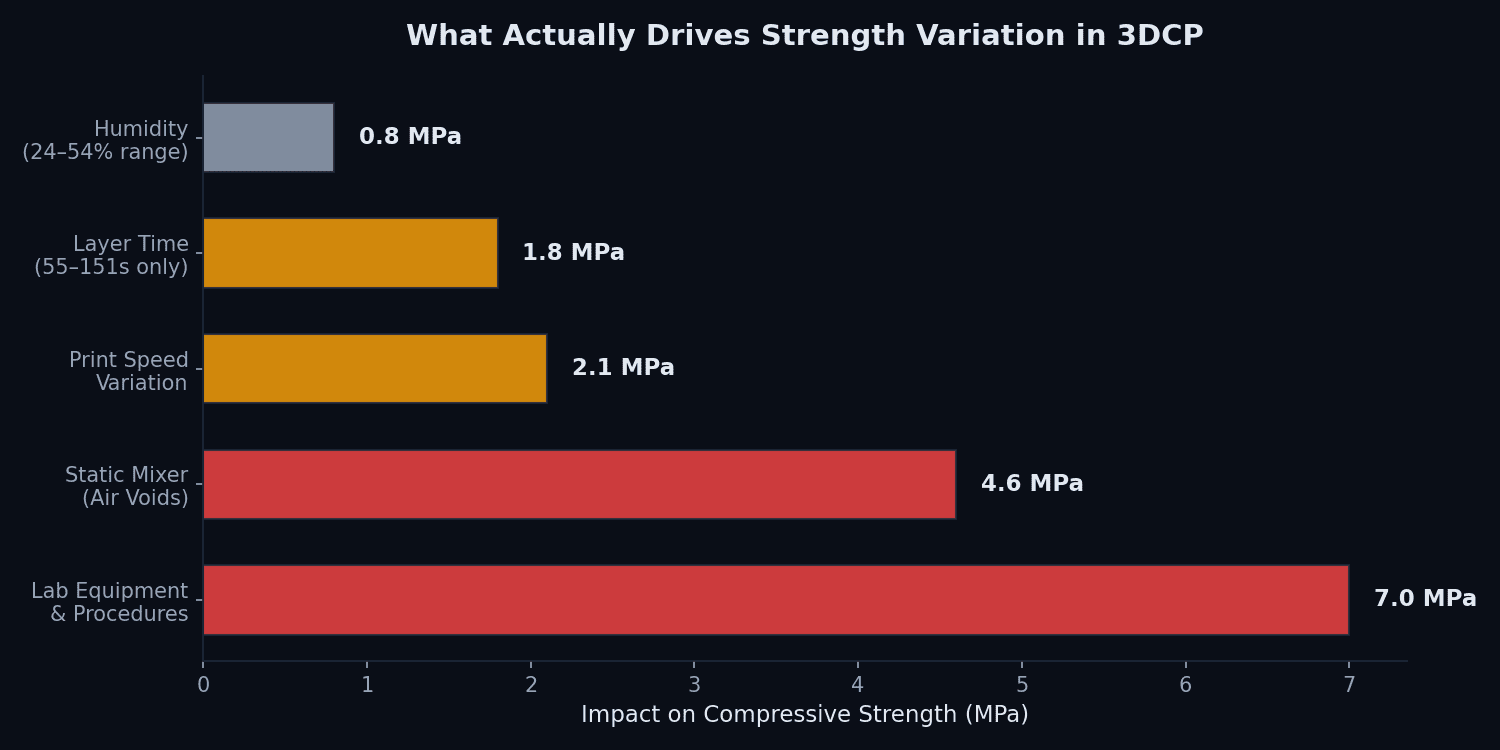

Finding #4: What Actually Drives 3D Concrete Printing Strength

Ranking the measurable factors by how much they move compressive strength in this dataset, the order is unambiguous:

1. Mix design & materials — by far the largest source of variation. Different binders and water/binder ratios span the full ~27–96 MPa range.
2. Lab equipment & procedures — pump type, nozzle geometry, mixing, and operator practice, bundled into the same inter-lab spread.
3. Print speed — a weak, controllable lever within the tested range.
4. Layer interval time — a weak lever within the short intervals tested in the ILS dataset (Finding #1, r ≈ -0.10, n = 3,143).

The top two are material- and equipment-related, not process parameters. For production QC, material consistency and equipment maintenance matter more than parameter tuning.

Key Takeaways for 3D Concrete Printing Process Control

The RILEM TC 304-ADC ILS-mech dataset is an extraordinary resource — a uniquely detailed open dataset linking 3D-printed concrete mechanics to layer-level process data across 30 labs worldwide. We are grateful to the TC 304-ADC committee and all participating laboratories for making this data openly available. Our analysis represents one interpretation of their work.

1. Lock down your material and calibrate your equipment first. Strength varied by roughly 27–96 MPa across labs and mixes — far more than any single process parameter — so consistency there dominates everything else.
2. Monitor density, not just strength. A density drop is the earliest indicator of air entrainment, mixing problems, or equipment issues.
3. Characterize your inline mixing equipment. If you use static mixers in a 2K system, verify their effect on your specific material and setup.
4. Don’t extrapolate short layer times to long ones. The 0.5–360 second layer-interval range in this dataset does not represent residential-scale printing conditions.

CEMFORGE incorporates these process-property relationships into its digital twin predictions. See how process parameters shape mix-design recommendations →

---

Data source: RILEM TC 304-ADC ILS-mech dataset v1.1.0 (CC BY 4.0). 30 laboratories worldwide, each using its own mix design (nine commercial products plus self-prepared mixes).

Disclaimer: This analysis was performed by Sunnyday Technologies and represents our independent interpretation of the publicly available dataset. It is not endorsed by or affiliated with RILEM TC 304-ADC or the participating institutions. All compressive strength values are specimen-level results. Void-analysis references are from related 3DCP studies, not the ILS dataset directly.
